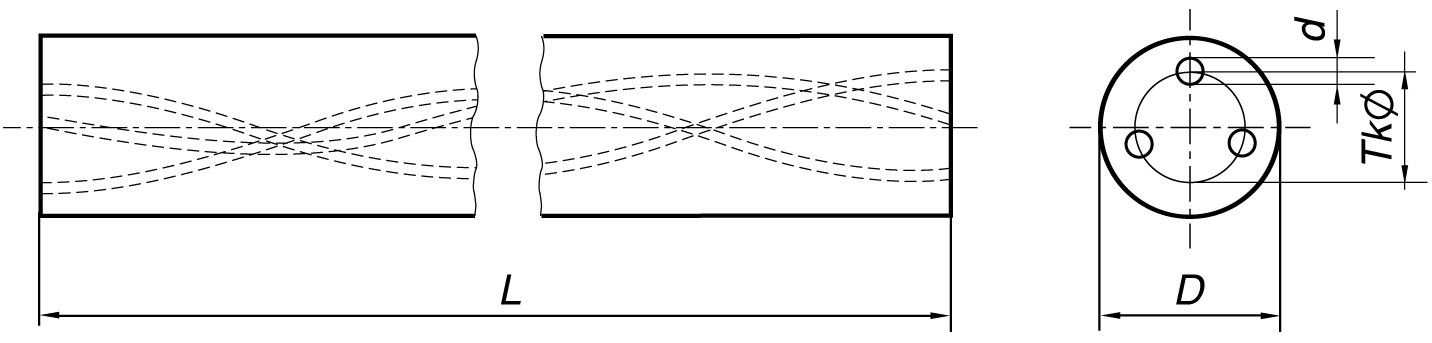

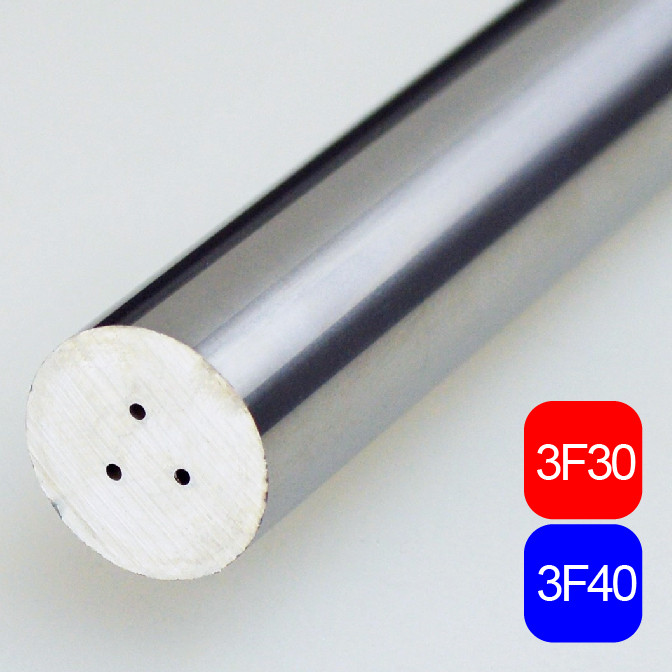

D=8,0x330+10 mm ground h5, Tk=4,0-0,3/d=0,70±0,1 mm TC-Rod with 3 twisted ducts 30° K-40UF Helix: 43,53 +0,89/-0,86 mm
Technical attributes
| Technical Details | Value |
| Diameter | 8.000 |
| Degree | 30 ° |
| Carbide grade | K-40UF |
| Length | 330 |
| Pitch circle | 4.00 |
| Coolant hole | 0.70 |
